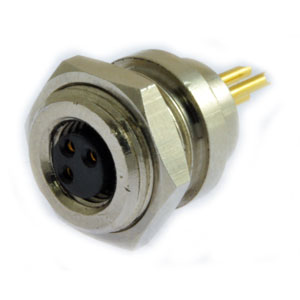

Waterproof Sensor Female Receptacle M8 HWR-1551
- HWR-1551-3P

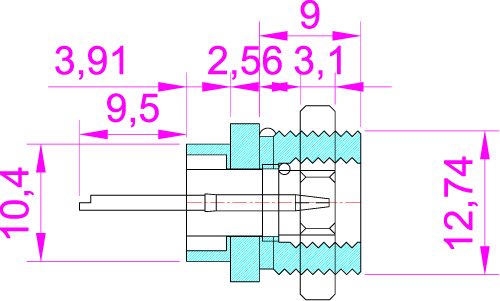

- Side View
-
Specifications Applications: Robot Packing Machines Special Purpose Equiment Process Machinery Injection Moulding Machines Transfer Lines Automatic Warchouse Textile Machine Electronic Component Assembly Lines Bottling & Filling Machines Metal Body: Diecast Nickel Plastic Core: ABS PA-777D Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD Cap: BSR-H 0.3t C2680 (65/35) Nickel Waterproof: IP67 Contact Resistance: 30mΩ Max. Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. -
Characteristics Metal Screw 3~4 Pin -
Substitute Items -
Mating Items HWR-9501 HWR-9001
