Waterproof DIN Circular HWB-1551



Product~Waterproof DIN Circular Sensor HWB-1551



  • HWB-1551
  • Front View
  • Side View
  • Option

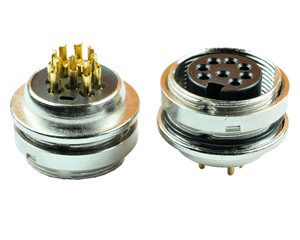

HWB-1551

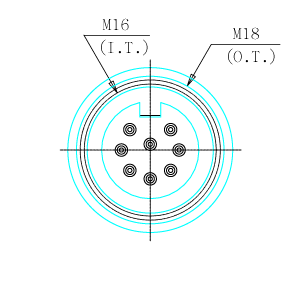

B2007 Front View

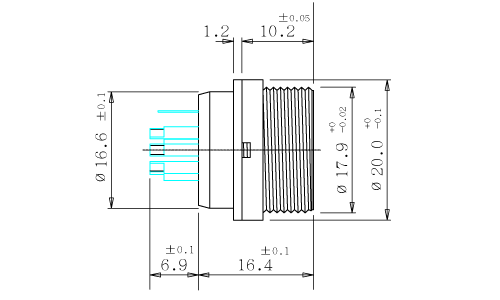

B2007 Side-1 View

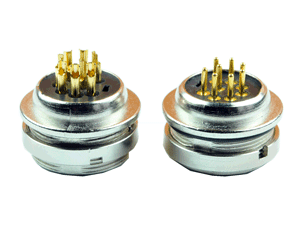

HWB-1551 Option
  • Specifications
    Applications: Robot
    Packing Machines
    Special Purpose Equiment
    Process Machinery
    Injection Moulding Machines
    Transfer Lines
    Automatic Warchouse
    Textile Machine
    Electronic Component Assembly Lines
    Bottling & Filling Machines
    Metal Body: Diecast Nickel
    Plastic Core: ABS PA-777D HB94
    Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD
    Grounding: BSR-H 0.2t C2680 (65/35) Silver PTD
    Ring: EPDM EP70
    Nut: Diecast Nickel
    Waterproof: IP40 and IP67
    Shielded and not shielded versions
    Current Rating: 1~7A
    Depends on number of contacts
    Voltage: 60~250V
    Overvoltage categories 1, pollution degree 1
    Cable Outlet: 3~8mm
    Diameter: 18~22mm
  • Characteristics
    Solder Type
    Metal Screw



  • Substitute Items





  • Mating Items
    HWB-1051
