Waterproof DIN Circular HWB-1051



Product~Waterproof DIN Circular Sensor HWB-1051



  • HWB-1051

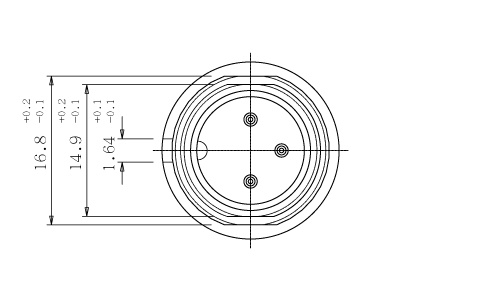

  • Top View
  • Side View

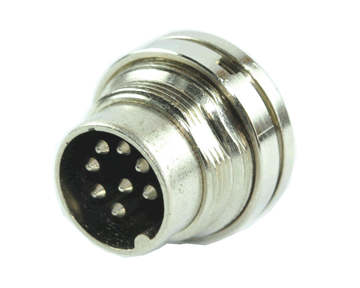

HWB-1051
HWB-1051 Front View
HWB-1051 Side View
  • Specifications
    Applications: Robot
    Packing Machines
    Special Purpose Equiment
    Process Machinery
    Injection Moulding Machines
    Transfer Lines
    Automatic Warchouse
    Textile Machine
    Electronic Component Assembly Lines
    Bottling & Filling Machines
    Metal Body: Diecast Nickel
    Plastic Core: Nylon 30% Glass Filled
    Contact Terminal: BSR-H 0.2t C1519R Gold PTD
    Hex Nut: Diecast Nickel
    Ring: EPDM EP70
    Waterproof: IP40 und IP67
    Shielded and not shielded versions
    Current Rating: 1~7A
    Depends on number of contacts
    Voltage: 60~250V
    Overvoltage categories 1, pollution degree 1
    Cable Outlet: 3~8mm
    Diameter: 18~22mm
  • Characteristics
    Solder Type
    Metal Screw



  • Substitute Items





  • Mating Items
    HWB-1551
