Waterproof Miniature DIN Circular Plug HWA-1551
- HWA-9501-8P

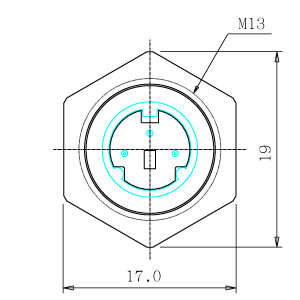

- Front View

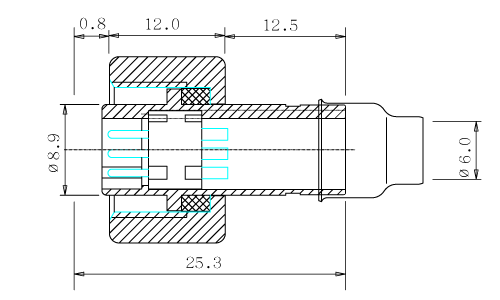

- Side View
-
Specifications Applications: Robot Packing Machines Special Purpose Equiment Process Machinery Injection Moulding Machines Transfer Lines Automatic Warchouse Textile Machine Electronic Component Assembly Lines Bottling & Filling Machines Metal Body: Diecast Nickel Plastic Core: Nylon & GF Contact Terminal: BSR-H 0.6D Silver PTD Hex Nut: Diecast Nickel Ring: EPDM Brown EP70 Cap: BSR-H 0.3t C2680 (65/35) Nickel Waterproof: IP67 Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. -
Characteristics Metal Screw 3~8 Pin -
Substitute Items -
Mating Items HWA-2501
