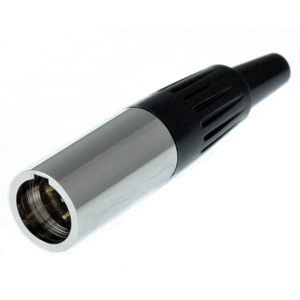

XLR Miniature Microphone Plug F-9101
- F-9101-4P
- Front View
- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94 Contact Terminal: BHR-H 1.5d R-35 Silver PTD Main Body: Diecast Nickel -
Electrical: Contact Resistance ≦3mΩ Insulatioin Resistance initial: ﹥2TΩ After Damp Heat Test ﹥1TΩ Dielectric strength 1.5kV dc Cable Shield-Shell Connection Optional Shielding effectiveness ﹥55dB @ 1.3GHz Rated Current Per Contact @ 35℃ 3 pole: 16A 4 pole: 10A 5 pole: 7.5A Capacitance Between Contacts 3 pole: ≦4pF 4, 5 pole: ≦7pF Rated Voltage 50 V ac -
Mechanical Lifetime ﹥1000 cycles Insertion~Withdrawal Force ≦20N Cable O.D. Range 3.5~8.0mm Max. Wire Size 3 pole: 2.5m㎡ /AEG14 4 pole: 1.5m㎡ /AEG16 5 pole: 1.0m㎡ /AEG18 Environmental: Operating Temperature: -30°C ~ +80°C Flammability: UL 94 HB Protection Class: IP40 Solderability Complies With IEC: 68-2-20 Manufacturing Standard IEC 61076-2-103 -
Characteristics -
Substitute Items F-1101 -
Mating Items F-2101
