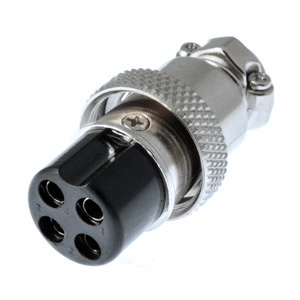

Mike Assembly Jack F-2201
- F-2201-4P
- Front View

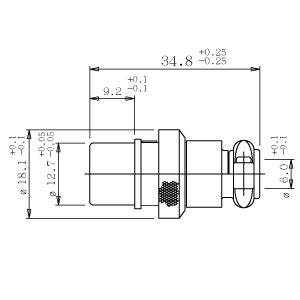

- Side View
-
Specifications Plastic Core: PBT D202G15 UL94 Contact Terminal: BHR-H 0.2t C5191 (PBP) Silver PTD Main Body: Diecast Nickel Lock Block: Diecast Nickel Nut Ring: Brass Nickel M16 Screw: 2AAR1050 A4510 Nickel M1.8 M2.0 -
Electrical: Contact Rating 3 contact 15 @ 125VAC 4 contact 10 @ 125VAC 5 contact 7.5 @ 125VAC 7 contact 5 @ 125VAC Contact Resistance 5 Milliohms Max Insulation Resistance 5000 Megohms Min Dielectric Strength 1400VAC Capacitance 3 Contact 4pF Max 4 Contact 7pF Max 5 Contact 7pF Max 7 Contact 9pF Max -
Characteristics Solder Metal Screw -
Substitute Items -
Mating Items F-1201
