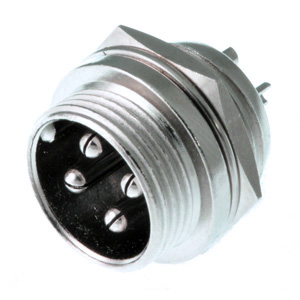

Mike PMT Male Socket F-1201
- F-1201-4P

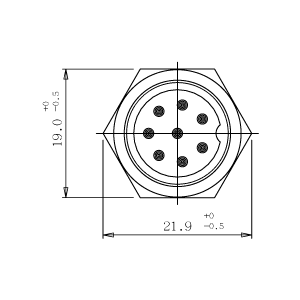

- Front View

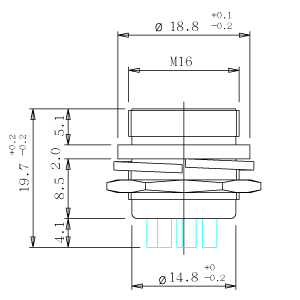

- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BHR-H 1.5d R-35 Silver PTD Main Body: Diecast Nickel Hex Nut: Brass Nickel M16 Spring Washer: Spring Steel Nickel Mechanical Insertion Force: 1.0~8.0 Kg Withdrawal Force: 1.0~1.8 Kg Environmental: Operating Temperature: -55°C ~ +70°C -
Electrical: Contact Rating 3 contact 15 @ 125VAC 4 contact 10 @ 125VAC 5 contact 7.5 @ 125VAC 7 contact 5 @ 125VAC Contact Resistance 5 Milliohms Max Insulation Resistance 5000 Megohms Min Dielectric Strength 1400VAC Capacitance 3 Contact 4pF Max 4 Contact 7pF Max 5 Contact 7pF Max 7 Contact 9pF Max -
Characteristics Solder Metal Screw -
Substitute Items -
Mating Items F-2201
