XLR Microphone Assembly Jack F-2005



  • F-2005-3P
  • Front View

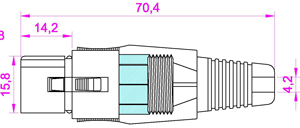

  • Side View
F1099



  • Specifications
    Plastic Core: Nylon 101F NC010 UL94
    Contact Terminal: BHR-H 1.5d R-35 Silver PTD
    Main Body: Diecast Nickel
    Electrical:

    Contact Resistance:≦3mΩ

    Insulatioin Resistance - initial: ﹥2GΩ

                -after damp heat test: ﹥1GΩ

    Dielectric strength: 1.5kV dc

    Cable Shield-Shell Connection: Choosable

    Shielding effectiveness: ﹥55dB @ 1.3GHz

    Rated Current Per Contact @ 35℃

                                - 3 pole: 16A

                                - 4 pole: 10A

                                - 5,6 pole: 7.5A

    Capacitance Between Contacts:

                                - 3 pole: ≦4pF

                                - 4, 5,6 pole: ≦7pF

    Rated Voltage: 50 V ac
    Mechanical

    Lifetime: ﹥1000 cycles

    Insertioni/ Withdrawal Force: ≦20N

    Cable O.D. Range: 3.5~8.0mm

    Max. Wire Size:      - 3 pole: 2.5m㎡ /AEG14

                                - 4 pole: 1.5m㎡ /AEG16

                                - 5,6 pole: 1.0m㎡ /AEG18
    Environmental:

    Operating Temperature: -30°C ~ +80°C

    Flammability: UL 94 HB

    Protection Class: IP40

    Solderability Complies With IEC: 68-2-20

    Manufacturing Standard IEC 61076-2-103
  • Characteristics





  • Substitute Items
    F-2001
    F-2005



  • Mating Items
    F-9005
