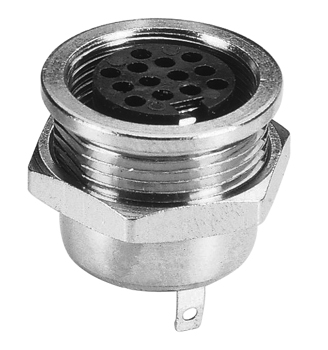

Multi-Pole Circular DIN PMT Socket D-1096
- D-1096-13P

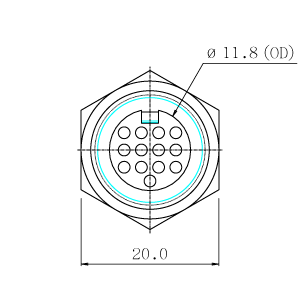

- Top View

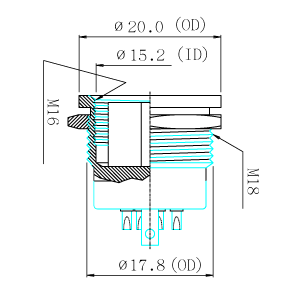

- Front View

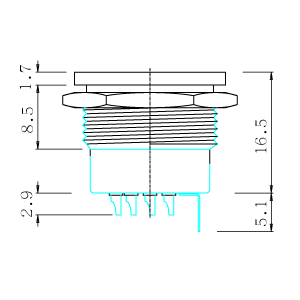

- Side View
-
Specifications Plastic Core: PBT D202G15 UL94 Contact Terminal: BSR-H 0.2t C5191R-H Silver PTD Grounding Piece: BSR-H 0.2t C5191R-H Silver PTD Main Body: 2AAR1050 A4510 Nickel Hex Nut: Brass NIckel Contact rating: 3A.34V DC Dielectric withstanding voltage: 500V (rms) Insulation Resistance: 300MΩ Min. at 500V DC Leakage resistance: 10000mΩ -
Characteristics Solder Type Metal Screw 13 Pin -
Substitute Items D-6009 -
Mating Items
