Multi-Pole Circular DIN Horizontal PCB Socket D-1090
- D-1090-13P

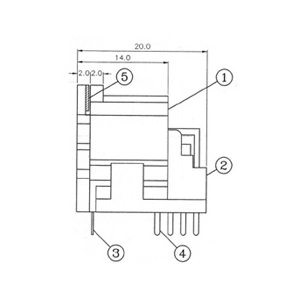

- Side View
-
Specifications Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. Insertion Force: 4.5Kg Max. Withdrawal Force: 0.6Kg~3Kg -
Characteristics Solder Type PCB Mount 13 Pin Quick Lock -
Substitute Items D-1091 D-1092 -
Mating Items D-6002 D-6003 D-6005 D-6006 D-6007 D-6008 D-6009
