Multi-Pole Metal Circular DIN Plug R/A D-6009
- D-6009-13P

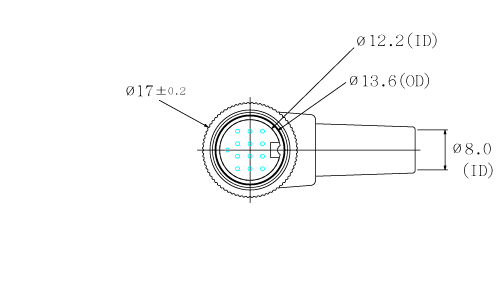

- Top View

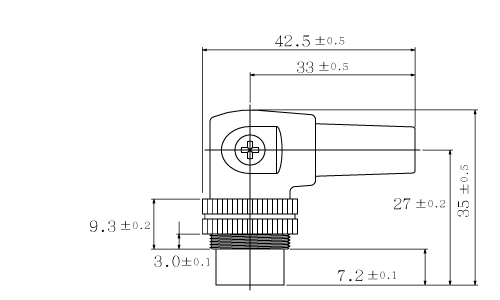

- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 0.8d R-35 Silver PTD Cover: Diecast Nickel Body: Diecast Nickel Clip Ring: BSR-H 0.8t Nickel Plastic Trail: PVC Screw: 2AAR1050 Nickel M3x0.5L=10.1 Nut Locking: Diecast Nickel Spring: SW-C 0.8d Nickel Contact rating: 3A.34V DC Dielectric withstanding voltage: 500V (rms) Insulation Resistance: 300MΩ Min. at 500V DC Leakage resistance: 10000mΩ -
Characteristics Solder Type Metal Screw Right Angle 13 Pin -
Substitute Items -
Mating Items D-1096 D-6095
