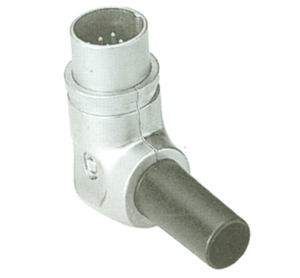

Multi-Pole Metal Circular DIN Plug R/A D-6008
- D-6008-13P

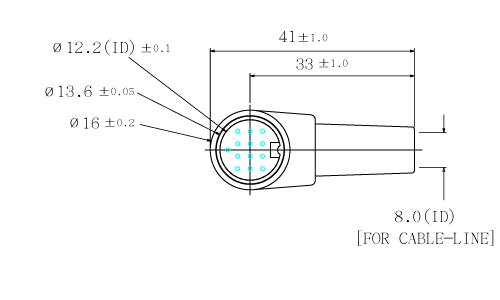

- Front View

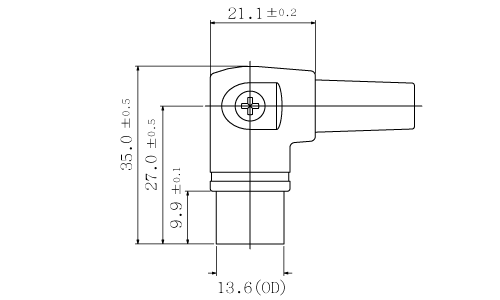

- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H R-35 Silver PTD Cover: Diecast Nickel Body: Diecast Nickel Clip Ring: BSR-H 0.8t Nickel Plastic Trail: PVC UL94 Screw: 2AAR1050 Nickel M3x0.5L-10.1 Contact rating: 3A.34V DC Dielectric withstanding voltage: 500V (rms) Insulation Resistance: 300MΩ Min. at 500V DC Leakage resistance: 10000mΩ -
Characteristics Solder Type Metal Screw 13 Pin -
Substitute Items -
Mating Items D-6095 D-1090 D-1091
