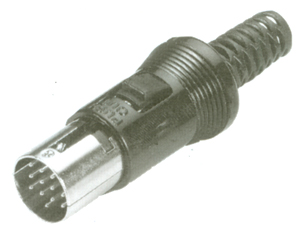

Multi-Pole Circular DIN Assembly Plug D-6007
- D-6007-13P
- Front View
- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 0.2t C5191R-H Silver PTD Cover: BSR-H 0.5t C2680 (65/35) Nickel Cover Lock: BSR-H 0.5t C2680 (65/35) Nickel Plastic Body: Nylon 101F NC010 UL94V2 Plastic Trail: PVC Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 12V DC 1A Max -
Characteristics Crimping Type Quick Lock 13 Pin -
Substitute Items -
Mating Items D-6095 D-1090 D-1091
