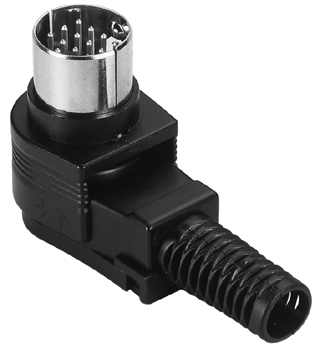

Multi-Pole Circular DIN Assembly Plug R/A D-6006
- D-6006-13P

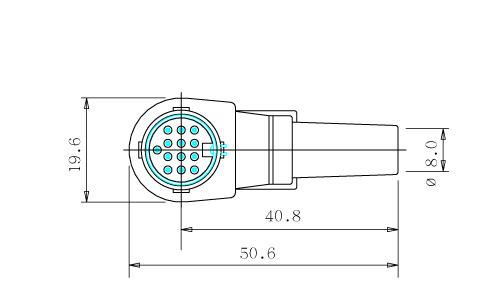

- Top View
- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 0.2t C1519R Silver PTD Cover: BSR-H 0.5t C2680 (65/35) Nickel Clip Apparatue: BSR-H 0.5t C2680 (65/35) Nickel
Outside Body: ABS PA-777D Inside Body: ABS PA-777D Plastic Back: ABS PA-777D Plastic Trail: PVC Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 12V DC 1A Max -
Characteristics Solder Type Quick Lock Right Angle 13 Pin -
Substitute Items -
Mating Items D-6095 D-1090 D-1091
