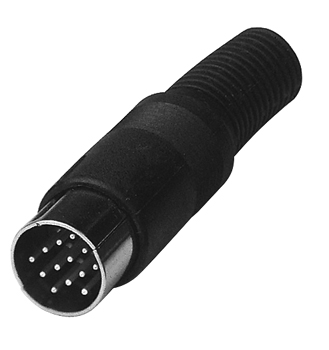

Multi-Pole Circular DIN Plug D-6003
- D-6003-13P

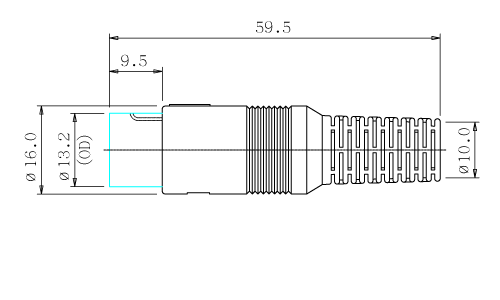

- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 0.8d R-35 Silver PTD Cover: BSR-H 0.5t C2680 (65/35) Nickel Plastic Body: EVA UE633 Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 12V DC 2A Max. -
Characteristics Solder Type Straight Type 13 Pin -
Substitute Items -
Mating Items D-6095 D-6099
