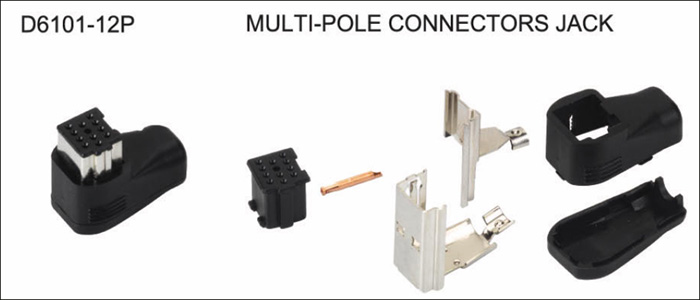

Multi-Pole Cable Jack Quick Lock D-6101
- D-6101-12P
- Front View
- Side View
-
Specifications Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. Insertion Force: 4.5Kg Max. Withdrawal Force: 0.6Kg~3Kg -
Characteristics 12 Pin -
Substitute Items -
Mating Items
