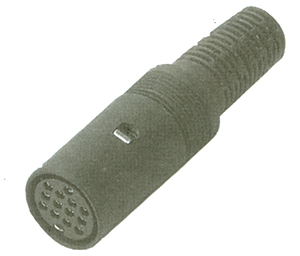

Multi-Pole Cable Jack D-6099
- D-6099-13P

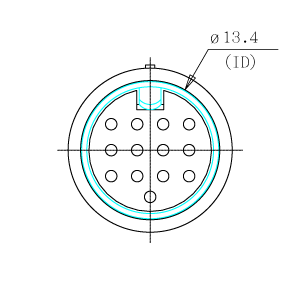

- Front View
- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 0.2t C5191R-H Silver PTD Cover: BSR-H 0.5t C2680 (65/35) Nickel Plastic Body: EVA UE633 Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 12V DC 2A Max. -
Characteristics Solder Type Straight Type 13 Pin -
Substitute Items -
Mating Items D-6003
