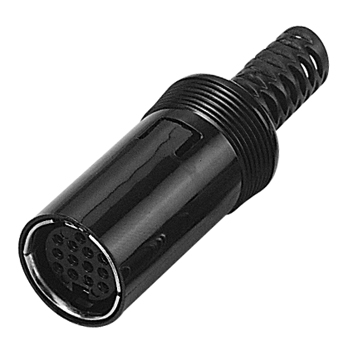

Multi-Pole Cable Plug Quick Lock D-6095
- D-6095-13P

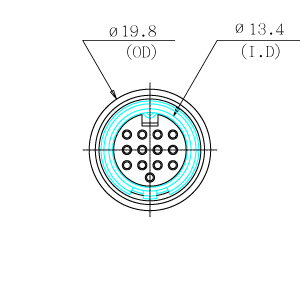

- Front View

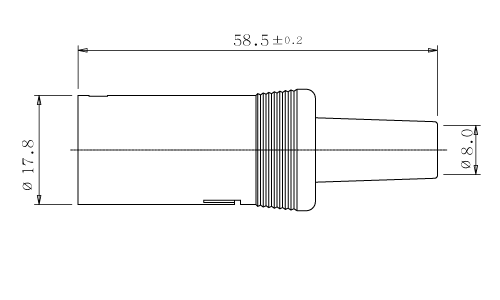

- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 0.2t C5191R Silver PTD Cover: BSR-H 0.5t C2680 (65/35) Nickel Plastic Body: Nylon 101F NC010 UL94V2 Plastic Trail: PVC UL94 Contact rating: 3A.34V DC Dielectric withstanding voltage: 500V (rms) Insulation Resistance: 300MΩ Min. at 500V DC Leakage resistance: 10,000mΩ -
Characteristics Solder Type Quick Lock 13 Pin -
Substitute Items -
Mating Items D-6002 D-6005 D-6006 D-6007 D-6008
