Bus Line Cable Plug Quick Lock D-3001
- D-3001-8P

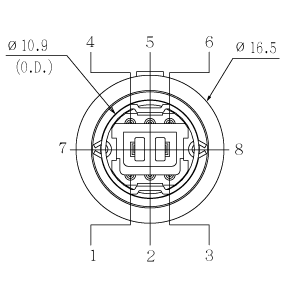

- Front View

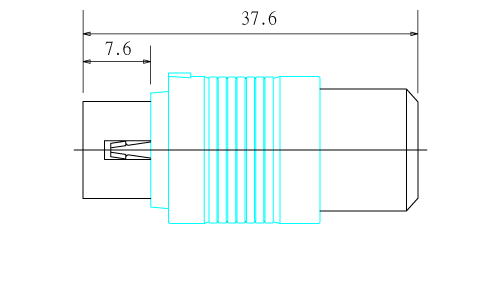

- Side View

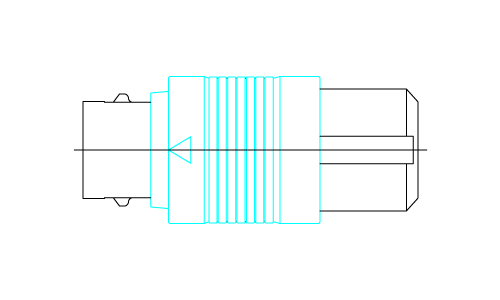

- Top View

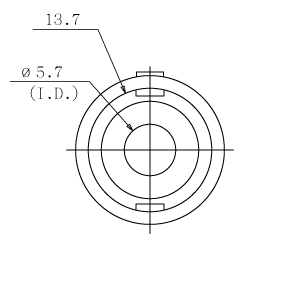

- Back View
-
Specifications Body: PBT D202G15 UL94 Base: PBT D202G15 UL94 Contact Terminal: BSR-H 0.2t C5191R-H Silver PTD Cover: BSR-H 0.5t C2680 (65/35) Nickel Lever: BSR-H 0.5t C2680 (65/35) Nickel Clring: BSR-H 0.8t Coupling: ABS PA-777D UL94 Cap: ABS PA-777D UL94 Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: No. 1~6: 12V DC 1A Max. No. 7~8: 12V DC 3A Max. -
Characteristics Crimping Type Straight Type Assembly Quick Lock 8 Pin -
Substitute Items -
Mating Items
