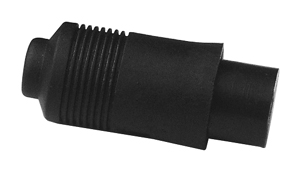

DC Power Jack D-2097
- D-2097

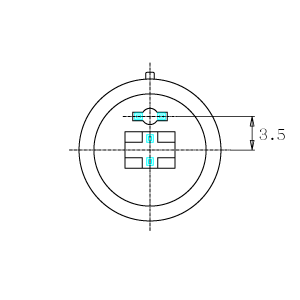

- Front View

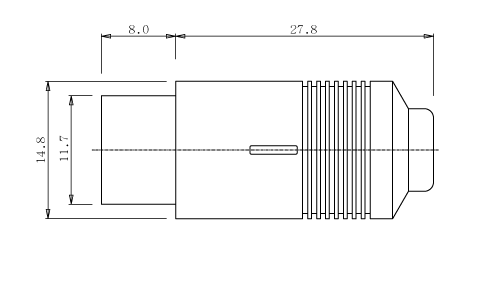

- Top View
- Back View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 0.7t C2680 (65/35) Silver PTD Plastic Body: EVA UE633 UL94 Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 12V DC 2A Max. -
Characteristics Solder Type Straight Type 2 Pin -
Substitute Items -
Mating Items D-2004
