Multipole Circular Molding Jack C-6098
- C-6098-14P

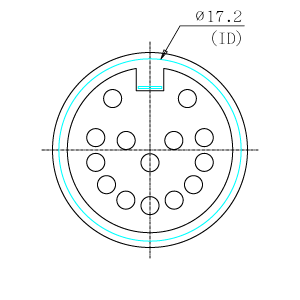

- Front View

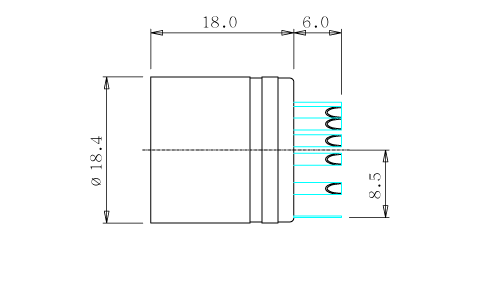

- Side View
-
Specifications Main Body: BSR-H 0.6t C2680 (65/35) Nickel Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD Grounding: BSR-H 0.2t C5191 (PBP) Silver PTD Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. -
Characteristics Solder Type 14 Pin -
Substitute Items -
Mating Items C-6004
