Multipole Circular Molding Plug C-6003
- C-6003-13P

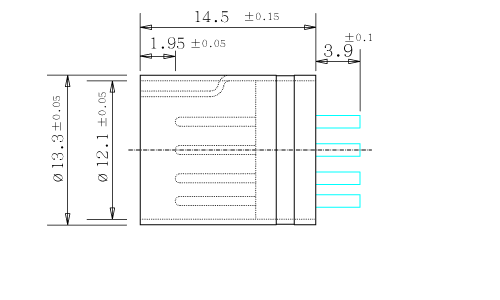

- Side View
-
Specifications Main Body: BSR-H 0.5t C2680 (65/35) Nickel Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 0.8d R-35 Silver PTD Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. -
Characteristics Solder Type 13 Pin -
Substitute Items -
Mating Items C-6099
