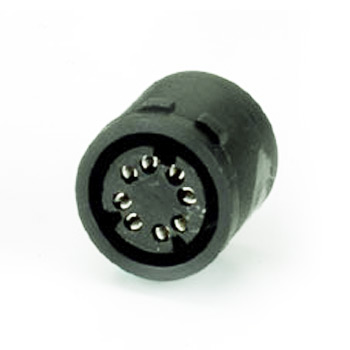

Miniature DIN Circular Molding Jack C-5098
- C-5098-8P

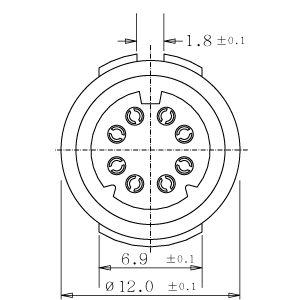

- Front View

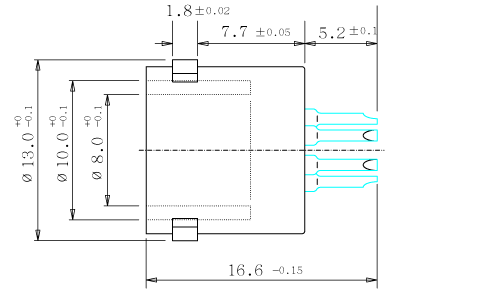

- Side View
-
Specifications Main Body: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. Insertion Force: 4.5Kg Max. Withdrawal Force: 0.9Kg~3Kg -
Characteristics Solder Type 8 Pin -
Substitute Items -
Mating Items C-5002
