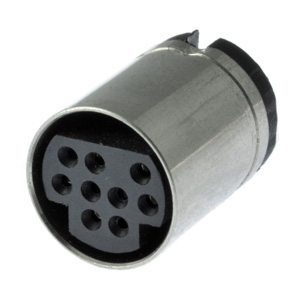

Miniature DIN Circular Molding Jack C-2001
- C-2001-9P

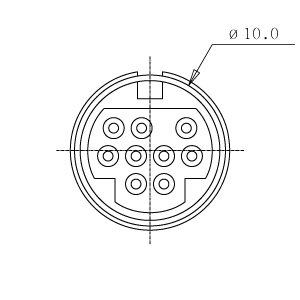

- Front View

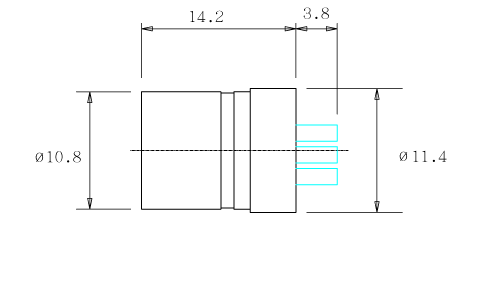

- Side View
-
Specifications Plastic Core: PBT D202G15 UL94 Contact Terminal: BSR-H 0.2 R-35 Silver PTD Main Body: BSR-H 0.4t C2680 (65/35) Nickel Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. Insertion Force: 4.5Kg Max. Withdrawal Force: 0.9Kg~3Kg -
Characteristics Solder Type 9 Pin -
Substitute Items -
Mating Items C-1003
