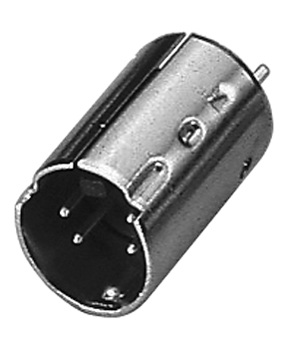

Miniature DIN Circular Molding Plug C-1002



  • C-1002-4P
  • Front View
  • Side View
C1002

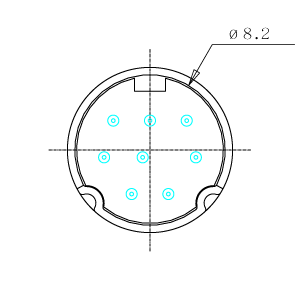

C1002 Front View

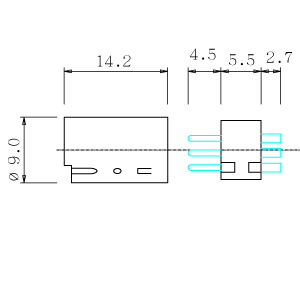

C1002 Side View



  • Specifications
    Plastic Core: PBT D202G15 UL94
    Contact Terminal: BSR-H 0.59d R-35 Silver PTD
    Main Body: BSR-H 0.4t C2680 (65/35) Nickel
    Contact Resistance: 30mΩ Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 100V AC 1A Max.
    12V DC 2A Max.
    Insertion Force: 4.5Kg Max.
    Withdrawal Force: 0.9Kg~3Kg
  • Characteristics
    Solder Type
    3~8 Pin



  • Substitute Items
    C-1001




  • Mating Items
    C-2002
