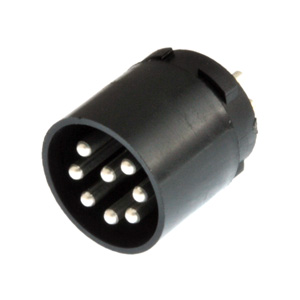

Standard Circular DIN Molding Plug C-6001
- C-6001-8P

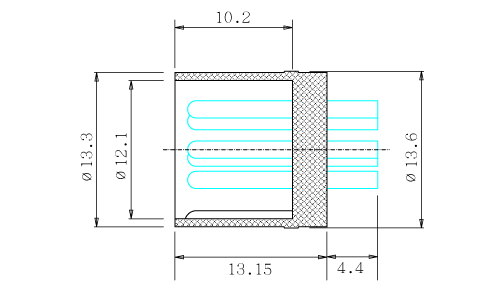

- Side View
-
Specifications Main Body: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 1.5d R-35 Silver PTD Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. -
Characteristics Solder Type 3~8 Pin -
Substitute Items C-3001 C-3002 -
Mating Items C-4001
