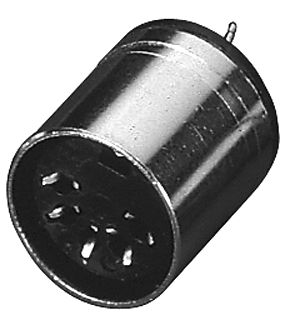

Standard Circular DIN Molding Jack C-4001
- C-4001-5P

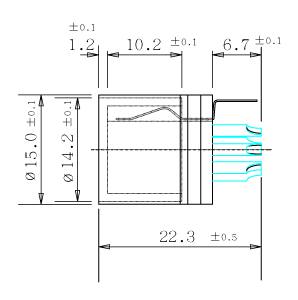

- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD Main Body: BSR-H 0.4t C2680 (65/35) Nickel Grounding: BSR-H 0.4t C5191 (PBP) Nickel Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. -
Characteristics Solder Type 3~8 Pin -
Substitute Items -
Mating Items C-3001 C-3002
