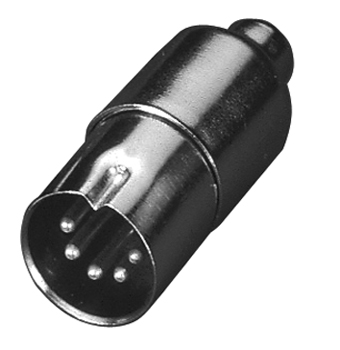

Standard Circular DIN Molding Plug C-3001
- C-3001-6P

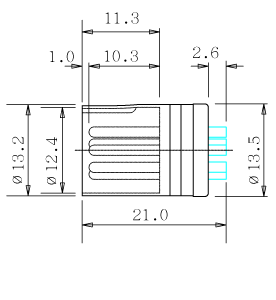

- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 1.5d C5191 (PBP) Silver PTD Main Body: BSR-H 0.4t C2680 (65/35) Nickel Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. -
Characteristics Solder Type 3~8 Pin -
Substitute Items C-3002 C-6001 -
Mating Items C-4001
