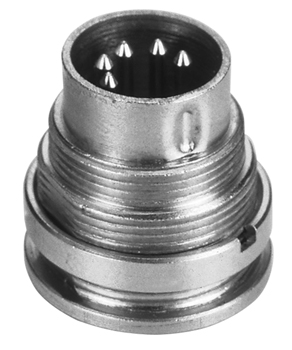

Metal Circular DIN PMT Socket B-2008
- B-2008-5P

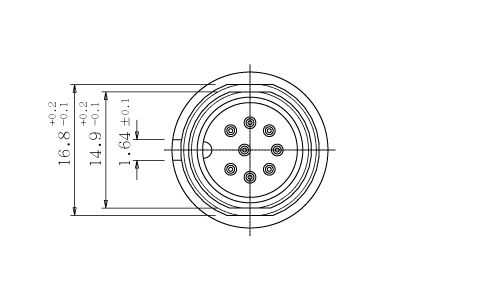

- Top View

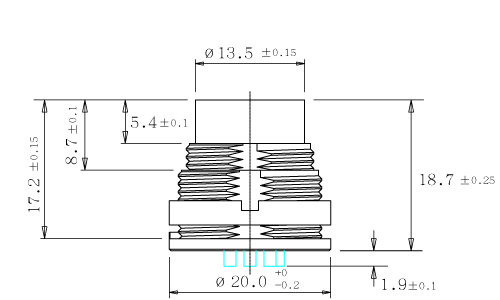

- Front View

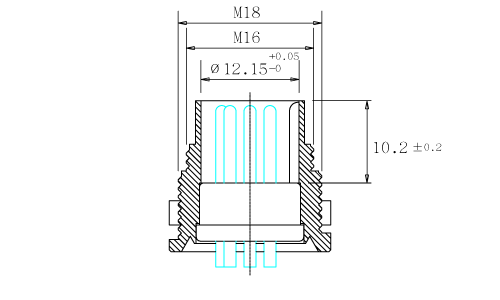

- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 1.5d Silver PTD Metal Body: Brass Nickel Nut Ring: Brass Nickel M18 Contact Resistance: 20mΩ Max. Dielectric Strength: 1000V AC / 1 Minute Insulation Resistance: 100MΩ Min. at 500V DC Rating: 100V AC 2A -
Characteristics Metal Cover Solder Type 3~8 Pin -
Substitute Items -
Mating Items B-3097
