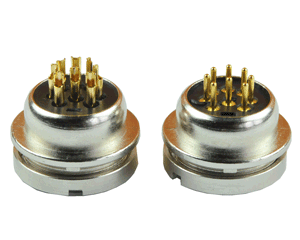

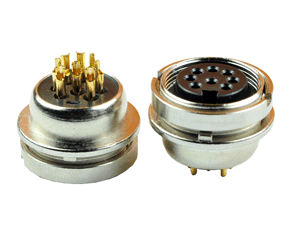

Metal Circular DIN PMT Socket B-2007



  • B-2007-8P
  • Top View
  • Side View
  • Option
HWB-1551 Front View

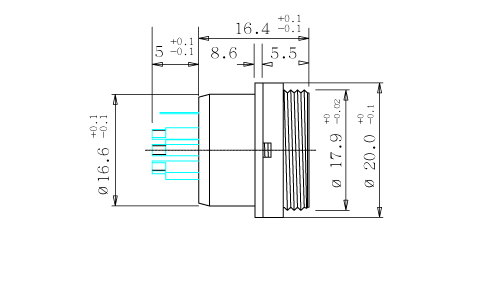

HWB-1551 Side View



  • Specifications
    Plastic Core: Nylon 101F NC010 UL94V2
    Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD
    Grounding: BSR-H 0.2t C2680 (65/35) Silver PTD
    Metal Body: Brass Nickel
    Nut: Brass Nickel
    Contact Resistance: 20mΩ Max.
    Dielectric Strength: 1000V AC / 1 Minute
    Insulation Resistance: 100MΩ Min. at 500V DC
    Rating: 100V AC 2A
  • Characteristics
    Metal Cover
    Solder Type
    3~8 Pin


  • Substitute Items





  • Mating Items
    B-8002
    B-9006
