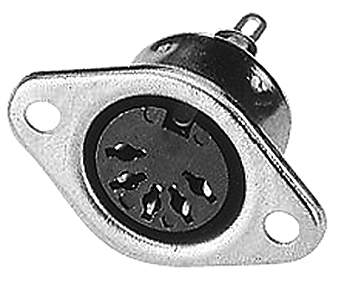

Metal Circular DIN PMT Socket B-2001
- B-2001-5P

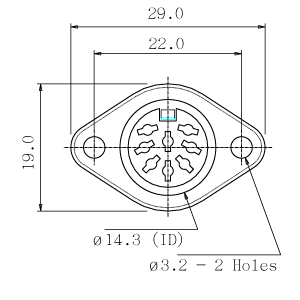

- Top View

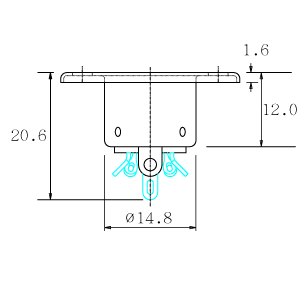

- Front View
-
Specifications Main Body: JIS G3141 SPCC-SD 0.5t Nickel Plastic Core: PBT D202G15 UL94 Contact Terminal: BSR-H 0.7t C2680 (65/35) Silver PTD Grounding Piece: BSR-H 0.2t C5191 (PBP) Nickel Contact Resistance: 20mΩ Max. Dielectric Strength: 1000V AC / 1 Minute Insulation Resistance: 100MΩ Min. at 500V DC Rating: 100V AC 2A -
Characteristics Metal Cover Solder Type 3~8 Pin -
Substitute Items B-2099 -
Mating Items B-9001 B-9002 B-9003 B-9005 B-9099
