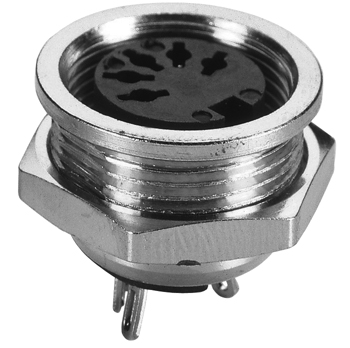

Metal Circular DIN PMT Socket B-1097
- B-1097-5P

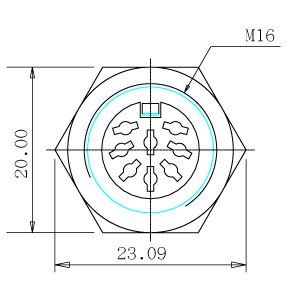

- Top View

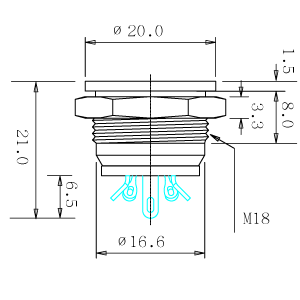

- Front View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 0.2t C2680 (65/35) Silver PTD Grounding: BSR-H 0.6t C2680 (65/35) Silver PTD Metal Body: Brass Nickel Hex Nut: Brass Nickel Contact Resistance: 20mΩ Max. Dielectric Strength: 1000V AC / 1 Minute Insulation Resistance: 100MΩ Min. at 500V DC Rating: 100V AC 2A -
Characteristics Metal Cover Solder Type 3~8 Pin -
Substitute Items -
Mating Items B-8002 B-9006
