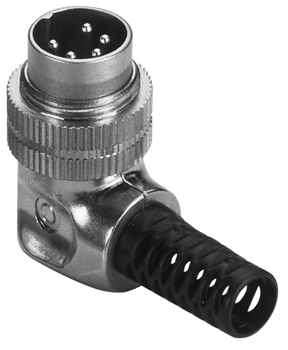

Metal Circular DIN Assembly R/A Plug B-9006
- B-9006-5P

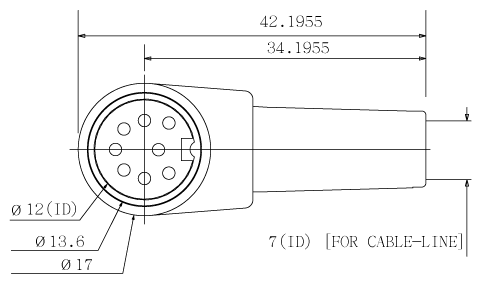

- Top View

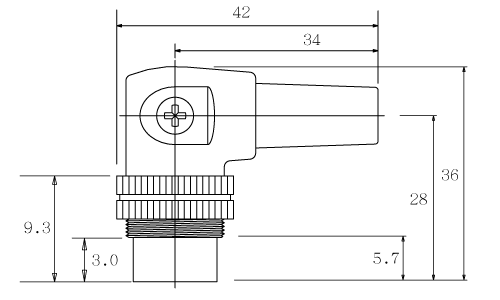

- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 1.5D R-35 Silver PTD Cover: Diecast Nickel Body: Diecast Nickel Clip Ring: BSR-H 0.8t Nickel Plastic Trail: PVC Screw (M3X0.5, L=10.1): 2AAR1050 Nickel Contact Resistance: 20mΩ Max. Dielectric Strength: 1000V AC / 1 Minute Insulation Resistance: 100MΩ Min. at 500V DC Rating: 100V AC 2A -
Characteristics Solder Type Metal Screw Right Angle Assembly 3~8 Pin -
Substitute Items -
Mating Items B-1006 B-1096 B-1098 B-2007 B-3097
