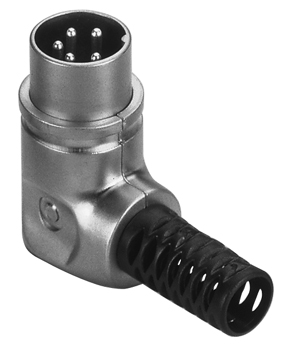

Metal Circular DIN Assembly R/A Plug B-9005



  • B-9005-5P

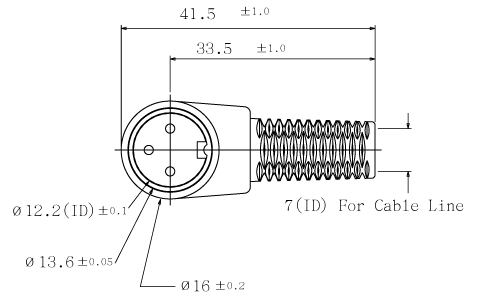

  • Front View

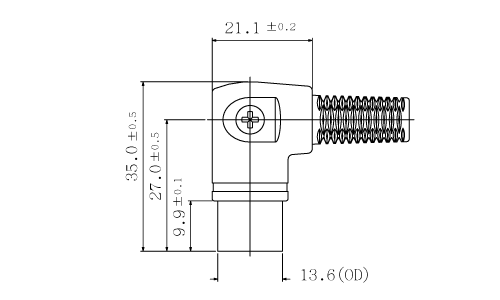

  • Side View
B9005



  • Specifications
    Plastic Core: Nylon 101F NC010 UL94V2
    Contact Terminal: BSR-H 1.5D R-35 Silver PTD
    Cover: Diecast Nickel
    Body: Diecast Nickel
    Clip Ring: BSR-H 0.8t Nickel
    Plastic Trail: PVC
    Screw (M3X0.5, L=10.1): 2AAR1050 Nickel
    Contact Resistance: 20mΩ Max.
    Dielectric Strength: 1000V AC / 1 Minute
    Insulation Resistance: 100MΩ Min. at 500V DC
    Rating: 100V AC 2A
  • Characteristics
    Solder Type
    Metal Cover
    Right Angle
    Assembly
    3~8 Pin
  • Substitute Items





  • Mating Items
    B-1001
    B-1003
    B-1099
    B-2001
    B-3099
