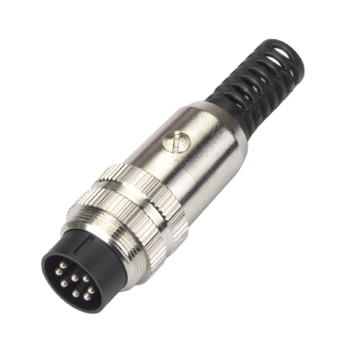

Metal Circular DIN Assembly Plug B-8004
- B-8004-8P

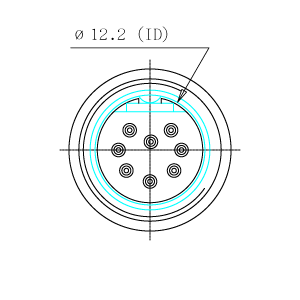

- Front View

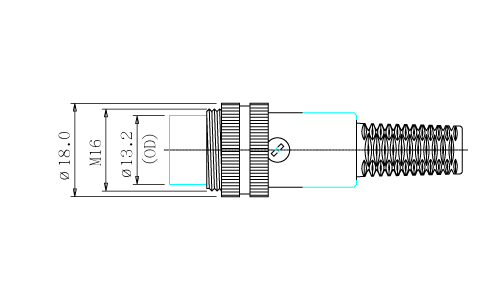

- Top View

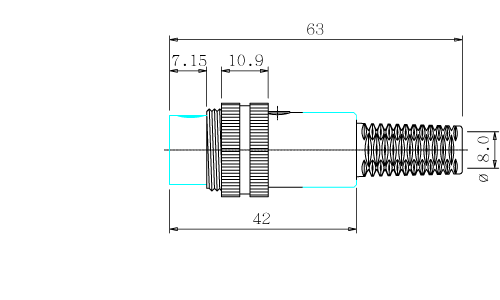

- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 1.5D R-35 Silver PTD Plastic Lining: ABS PA-777D 94HB Main Body & Nut: Brass Nickel Clip Ring: BSR-H 0.7t C2680 (65/35) Nickel Screw: 2AAR1050 A4510 Nickel Main Body: Diecast Nickel Plastic Trail: PVC Contact Resistance: 20mΩ Max. Dielectric Strength: 1000V AC / 1 Minute Insulation Resistance: 100MΩ Min. at 500V DC Rating: 100V AC 2A -
Characteristics Solder Type Metal Screw Assembly 3~8 Pin -
Substitute Items -
Mating Items B-3096
