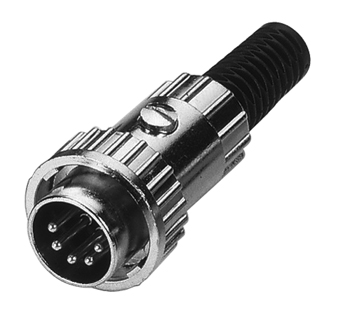

Metal Circular DIN Assembly Plug B-8003



  • B-8003-5P

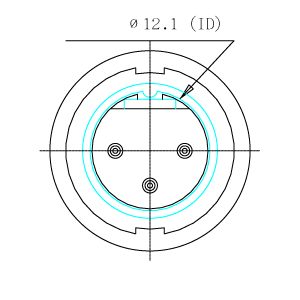

  • Front View

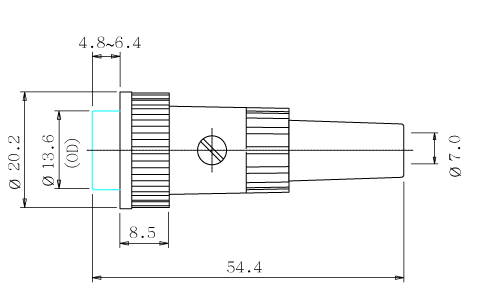

  • Top View
B8003
B8003 Front View
B8003 Side View



  • Specifications
    Plastic Core: Nylon 101F NC010 UL94V2
    Contact Terminal: BSR-H 1.5D R-35 Silver PTD
    Clip Plate: SPC SB 0.95t Nickel
    Lock Cover: Diecast Nickel
    Screw: 2AAR1050 A4510 Nickel
    Main Body: Diecast Nickel
    Plastic Trail: PVC
    Contact Resistance: 20mΩ Max.
    Dielectric Strength: 1000V AC / 1 Minute
    Insulation Resistance: 100MΩ Min. at 500V DC
    Rating: 100V AC 2A
  • Characteristics
    Solder Type
    Metal Screw
    Assembly
    3~8 Pin

  • Substitute Items





  • Mating Items
    B-2002
    B-3098
