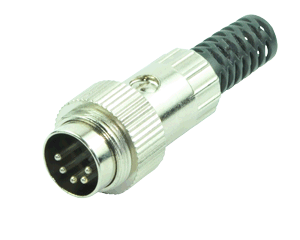

Metal Circular DIN Assembly Plug B-8002



  • B-8002-5P
  • Front View
  • Top View
B8002 Front View
B8002 Side View



  • Specifications
    Plastic Core: Nylon 101F NC010 UL94V2
    Contact Terminal: BSR-H 1.5D R-35 Silver PTD
    Clip Plate: SPCC SB 0.95t Nickel
    Nut: Aluminum Alloy Nickel
    Nut Ring (M16): Diecast Nickel
    Screw: 2AAR1050 A4510 Nickel
    Main Body: Zinc Alloy Nickel
    Plastic Trail: PVC
    Contact Resistance: 20mΩ Max.
    Dielectric Strength: 1000V AC / 1 Minute
    Insulation Resistance: 100MΩ Min. at 500V DC
    Rating: 100V AC 2A
  • Characteristics
    Solder Type
    Metal Screw
    Assembly
    3~8 Pin

  • Substitute Items





  • Mating Items
    B-1006
    B-1096
    B-1098
    B-2007
    B-3097
