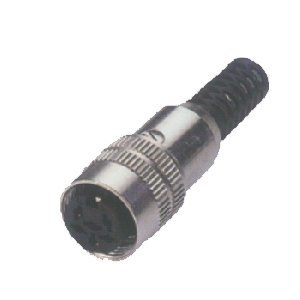

Metal Circular DIN Assembly Jack B-3096
- B-3096-6P

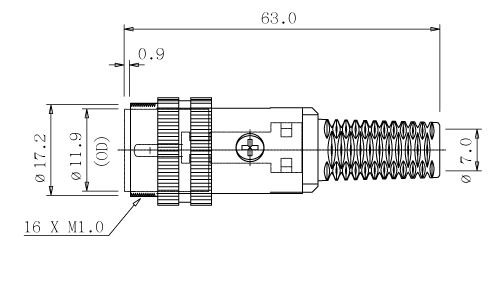

- Top View
-
Specifications Plastic Core: ABS PA777D HB94 Contact Terminal: BSR-H 0.7t C2680 (65/35) Silver PTD Clip Plate: ABS PA777D HB94 Grounding Piece: ABS PA777D HB94 Nut Ring: Diecast Nickel M16 Screw: 2AAR1050 A4510 Nickel Main Body: Diecast Nickel Plastic Trail: PVC Contact Resistance: 20mΩ Max. Dielectric Strength: 1000V AC / 1 Minute Insulation Resistance: 100MΩ Min. at 500V DC Rating: 100V AC 2A -
Characteristics Solder Type Metal Screw Assembly 3~8 Pin -
Substitute Items -
Mating Items B-8004
