Circular DIN PCB Horizontal Socket B-1002
- B-1002-5P

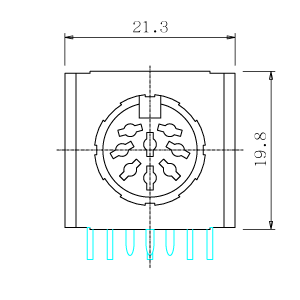

- Front View

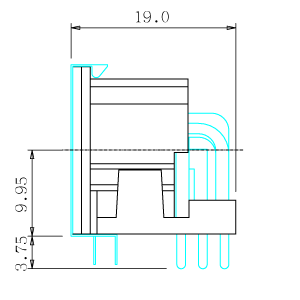

- Side View
-
Specifications Main Body: PBT D202G15 UL94 Base: PBT D202G15 UL94 Contact Terminal: BSR-H 0.7t C2680 (65/35) Silver PTD Earth Terminal: BSR-H 0.2t C5191 (PBP) Nickel Face Cover: BSR-H 0.2t C5191 (PBP) Nickel Contact Resistance: 20mΩ Max. Dielectric Strength: 1000V AC / 1 Minute Insulation Resistance: 100MΩ Min. at 500V DC Rating: 100V AC 2A -
Characteristics Right angle Snap-in fit terminal PCB mount 3~8 Pin -
Substitute Items B-1001 B-1006 -
Mating Items B-9001 B-9002 B-9099
