Circular DIN Quick Lock Assembly R/A Plug B-9004
- B-9004-8P

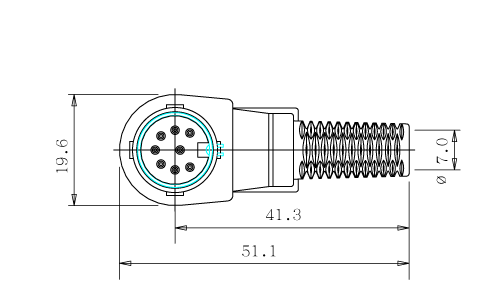

- Top View

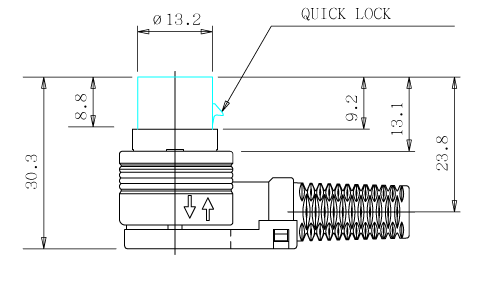

- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 1.5d R-35 Silver PTD Cover: BSR-H 0.5t C2680 (65/35) Nickel Clip Apparatue: BSR-H 0.5t C2680 (65/35) Nickel Outside Body: ABS PA-777D UL94 Inside Body: ABS PA-777D UL94 Plastic Back: ABS PA-777D UL94 Plastic Trail: PVC Contact Resistance: 20mΩ Max. Dielectric Strength: 1000V AC / 1 Minute Insulation Resistance: 100MΩ Min. at 500V DC Rating: 100V AC 2A -
Characteristics Solder Type Right Angle Assembly 3~8 Pin -
Substitute Items B-8001 -
Mating Items B-1005 B-2003 B-2005 B-3002
