Circular DIN Assembly R/A Plug B-9002
- B-9002-7P

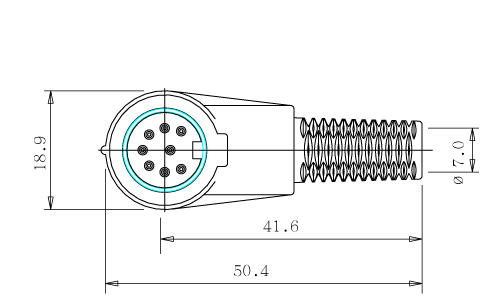

- Top View

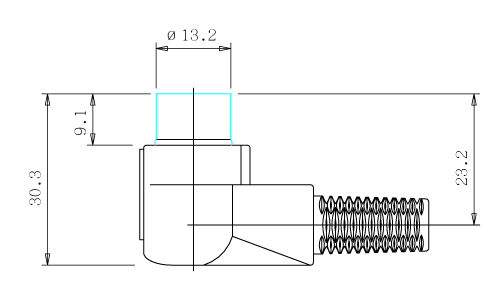

- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 1.5d R-35 Silver PTD Cover: BSR-H 0.5t C2680 (65/35) Nickel Plastic Body: Nylon 101F NC010 UL94V2 Plastic Trail: PVC Contact Resistance: 20mΩ Max. Dielectric Strength: 1000V AC / 1 Minute Insulation Resistance: 100MΩ Min. at 500V DC Rating: 100V AC 2A -
Characteristics Solder Type Right Angle Assembly 3~8 Pin -
Substitute Items B-3004 B-9001 B-9003 -
Mating Items B-1001 B-1099 B-2001 B-2099 B-3001
