Circular DIN Assembly Plug B-9001
- B-9001-5P

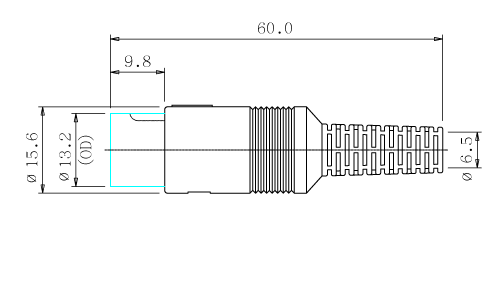

- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 1.5D R-35 Silver PTD Cover: SPCC SB 0.5t Nickel Plastic Body: EVA UE633 Contact Resistance: 20mΩ Max. Dielectric Strength: 1000V AC / 1 Minute Insulation Resistance: 300MΩ Min. at 500V DC Rating: 100V AC 2A -
Characteristics Solder Type Assembly 3~8 Pin -
Substitute Items B-3004 B-9002 B-9003 -
Mating Items B-1001 B-1099 B-2001 B-2099 B-3001
