Circular DIN Assembly Plug B-8001
- B-8001-5P

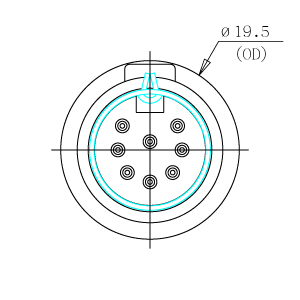

- Front View

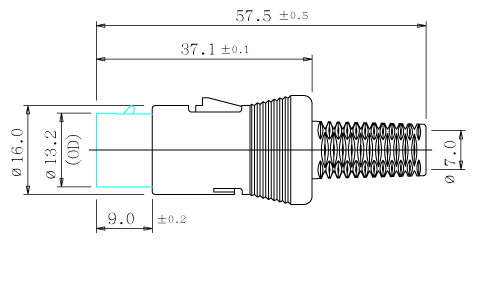

- Side View 1

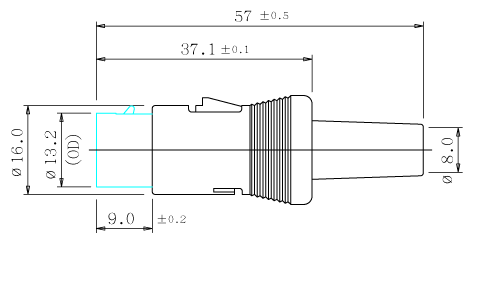

- Side View 2
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 1.5d R-35 Silver PTD Cover: BSR-H 0.5t C2680 (65/35) Nickel Locking: BSR-H 0.5t C2680 (65/35) Nickel Plastic Body: Nylon 101F NC010 UL94V2 Plastic Trail: PVC UL94 Contact Resistance: 20mΩ Max. Dielectric Strength: 1000V AC / 1 Minute Insulation Resistance: 100MΩ Min. at 500V DC Rating: 100V AC 2A -
Characteristics Solder Type Quick Lock Assembly 3~8 Pin -
Substitute Items B-9004 -
Mating Items B-1005 B-2003 B-2005 B-3002
