Circular DIN Assembly Plug B-3004
- B-3004-5P

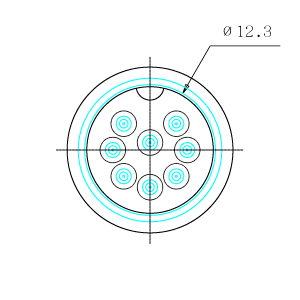

- Front View

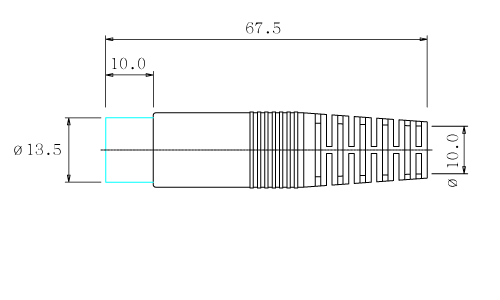

- Side View
-
Specifications Plastic Core: PBT D202G15 UL94 Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD Cover: BSR-H 0.6t C2680 (65/35) Nickel Metal Cap: BSR-H 0.3t C2680 (65/35) Nickel Plastic Body: EVA UE633 Contact Resistance: 20mΩ Max. Dielectric Strength: 1000V AC / 1 Minute Insulation Resistance: 100MΩ Min. at 500V DC Rating: 100V AC 2A -
Characteristics Crimping Type Assembly 3~8 Pin -
Substitute Items B-9001 B-9002 B-9003 -
Mating Items B-1001 B-1099 B-2001 B-2099 B-3001
