Circular DIN Assembly Jack B-3002



  • B-3003-8P

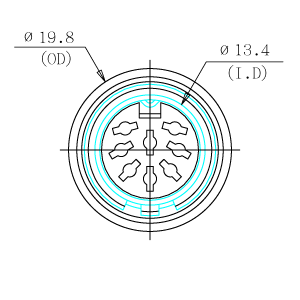

  • Front View

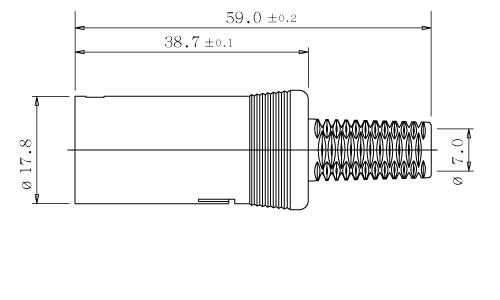

  • Side View 1

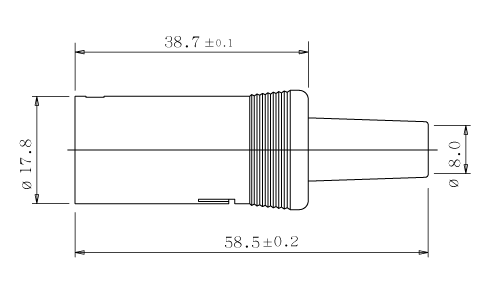

  • Side View 2
B3001



  • Specifications
    Plastic Core: PBT D202G15 UL94V2
    Contact Terminal: BSR-H 0.6t C2680 (65/35) Silver PTD
    Cover: BSR-H 0.6t C2680 (65/35) Nickel
    Plastic Body: Nylon 101F NC010 UL94V2
    Plastic Trail: PVC UL94
    Contact Resistance: 20mΩ Max.
    Dielectric Strength: 1000V AC / 1 Minute
    Insulation Resistance: 100MΩ Min. at 500V DC
    Rating: 100V AC 2A
  • Characteristics
    Solder Type
    Quick Lock
    Assembly
    3~8 Pin

  • Substitute Items





  • Mating Items
    B-8001
    B-9004
