Circular DIN Assembly Jack B-3002
- B-3002-5P

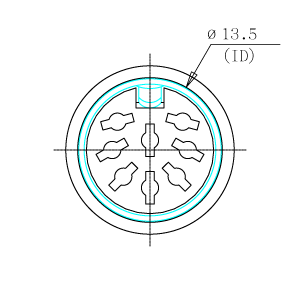

- Front View

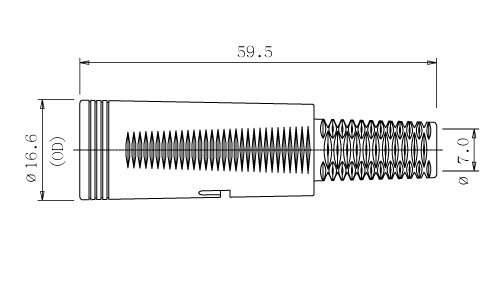

- Side View
-
Specifications Plastic Core: Nylon 101F NC010 UL94V2 Contact Terminal: BSR-H 0.6t C2680 (65/35) Silver PTD Cover: BSR-H 0.5t C2680 (65/35) Nickel Plastic Body: Nylon 101F NC010 UL94V2 Plastic Trail: PVC Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. -
Characteristics Solder Type Assembly 3~8 Pin -
Substitute Items B-3001 -
Mating Items B-2004 B-3004 B-9001 B-9005 B-9099
