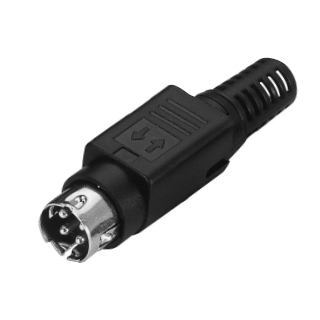

Miniature DIN Circular DC Power Assembly Plug A-9099U



  • A-9099U-4P
  • Front View

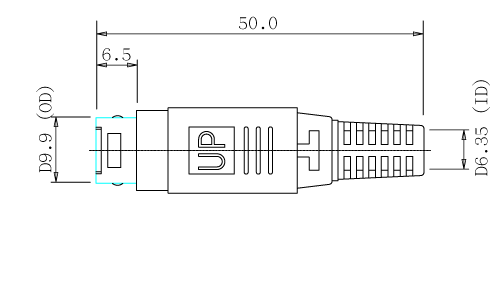

  • Side View
  • Side View
A9098
A9099 Front View
A9099 Side View
A9099 Side View



  • Specifications
    Plastic Core: Nylon 101F NC010 UL94
    Contact Terminal: BSR-H 1.5D R-35 Silver PTD
    Slide Ring: TEPCON M90 UL94V2
    Main Cover: BSR-H 0.4t C2680 (65/35) Nickel
    Side Cover: BSR-H 0.4t C2680 (65/35) Nickel
    Main Body: ABS PA-777D HB94
    Latter Body: ABS PA-777D HB94
    Spring: SW-C 0.6D Stain
    Plastic Trail: PVC
    Voltage withstanding: AC 250V/1 Minute
    Endurance insertion extraction: 5000 cycles
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 20V DC 7.5A Max.
    Insertion Force: 5Kg Max.
    Withdrawal Force: 1~5Kg
  • Characteristics
    Solder Type
    Quick Lock Type
    Assembly
    3~4 Pin

  • Substitute Items
    A-9099




  • Mating Items
    A-1009
    A-1009-SM
