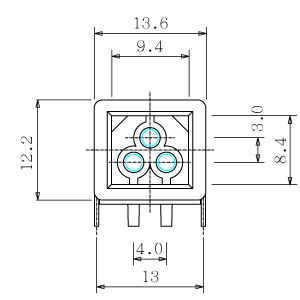

| Main Body: |
PBT D202G16 UL94 |
| Contact Terminal: |
BSR-H 1.98d R-35 Silver PTD |
| Earth Terminal: |
BSR-H 0.4t C2680 (65/35) Nickel |
| Contact Resistance: |
I. Instal before any testing
(1) Contact terminal to earth terminal:
30 mΩ Max.
(2) Plug to contact terminal:
50 mΩ Max.
|
II. After life test with the mate plug
(1) Contact terminal to earth terminal:
30 mΩ Max.
(2) Plug to contact terminal:
100 mΩ Max. |
| Insertion Forece: |
7.2kgs Max. |
| Extraction Force: |
1.2kgs Min. |
| Insulation Resistance: |
50MΩ Min. at 250V DC |
| Plug Test: |
11kgs plug Max. applied to each pin, The solder joining the pin should not loosen for 10 sec. |
| Solder heat terminal for PCB temperature: |
Stand 260°C for 51 sec. |
| Insulation: |
Plastic housing resistance value at 1,000 Ω. |
| Insulation Resistance: |
Between any open terminal:
more than 100 Ω by 100V or 250V humidity at 90~95% R.H. at 40°C |
| Voltage Test: |
Withstand 500V AC between any open terminal for 1 minute. |
| Life Test: |
Withstand more than 5,000 cycles insertion withdrawal with testing plug. |
| Rating: |
20V DC 8A Max. |
