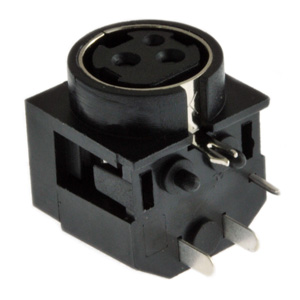

Miniature DIN Circular DC Power Horizontal Socket A-1009



  • A-1009-3P
  • Front View
  • Side View
  • Top View
A1008

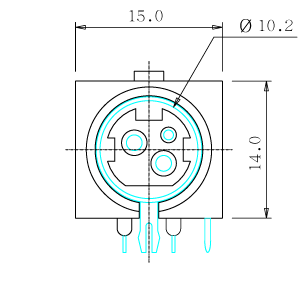

A1008 Front View

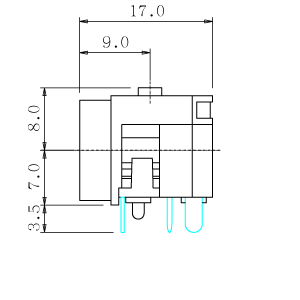

A1008 Side View

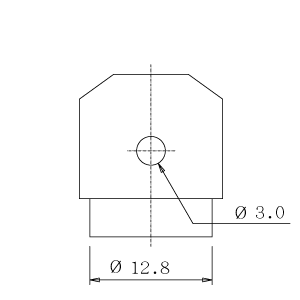

A1008 Top View



  • Specifications
    Main Body: PBT D202G15 UL94
    Base: PBT D202G15 UL94
    Earth Terminal: BSR-H 0.4t C2680 (65/35) Nickel
    Contact Terminal: BSR-H 0.3t C5191 (PBP) Silver PTD
    Contact Resistance: Pin No. 1 & 2 30mΩ Max.
    Pin No. 3 50mΩ Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: Pin No. 1 & 2 20V DC 7.5A Max.
    Pin No. 3 20V DC 1A Max.
    Insertion Force: 4.5Kg Max.
    Withdrawal Force: 0.9Kg~3Kg
  • Characteristics
    Right angle
    Quick Lock Type
    PCB mount
    3~4 Pin

  • Substitute Items
    A-1009-SM




  • Mating Items
    A-9099
    A-9099-U
