Miniature DIN Circular DC Power Assembly Jack A-2005
- A-2005-4P

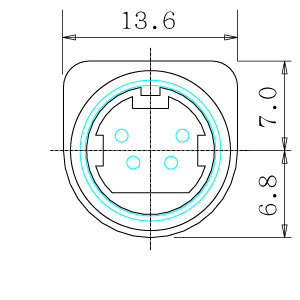

- Front View

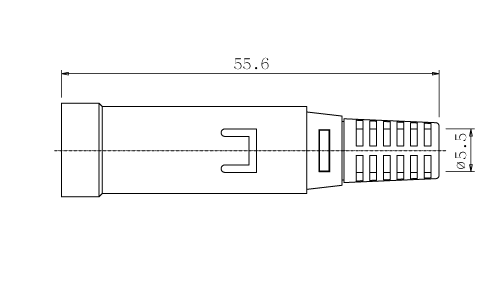

- Side View
-
Specifications Plastic Core: ABS PA-777D 94HB Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD Metal Cover: BSR-H 0.4t C2680 (65/35) Nickel Plastic Body: ABS PA-777D 94HB Plastic Trail: PVC Contact Resistance: Pin No. 1 & 2 30mΩ Max. Pin No. 3 50mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: Pin No. 1 & 2 20V DC 7.5A Max. Pin No. 3 20V DC 1A Max. Insertion Force: 4.5Kg Max. Withdrawal Force: 0.9Kg~3Kg -
Characteristics Solder Type Quick Lock Type Assembly 3~4 Pin -
Substitute Items -
Mating Items A-9099 A-9099U
